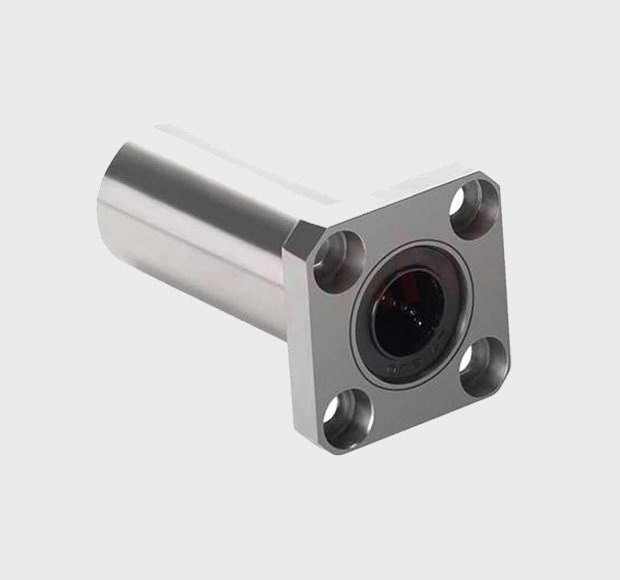

High Precision LMK LMF LMH LM 13 16 20 25 UU LUU Ball Bearing Linear Bearing
We supply high quality high Precision LMK LMF LMH LM 13 16 20 25 UU LUU,It is widely used in fields such as mechanical CNC machine tools, medical equipment, printers, automation equipment, etc.
- Product Details
- parameter
- Packing
- Inquiry Now
- Related Products
- Customer Reviews
Linear bearing specifications
"LM" metric standard type linear bearing
"LME" means inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" means open type linear bearing
"AJ" means adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing
Type | Ball Rows | dr | dr (Tol.) | D | D (Tol.) | L | L (Tol.) | D1 | D1 (Tol.) | K | H | PCD | d1xd2xh | C [N] | Co [N] | Weight (g) |
LMK12LUU | 4 | 12 | -0.01 | 21 | -0.016 | 57 | -0.3 | 42 | -0.2 | 32 | 6 | 32 | 4.5x8x4.4 | 657 | 1200 | 82 |
LMK16LUU | 5 | 16 | -0.01 | 28 | -0.016 | 70 | -0.3 | 48 | -0.2 | 37 | 6 | 38 | 4.5x8x4.4 | 1230 | 2350 | 160 |
LMK20LUU | 5 | 20 | 0 | 32 | 0 | 80 | -0.3 | 54 | -0.2 | 42 | 8 | 43 | 5.5×9.2×5.4 | 1400 | 2750 | 230 |
LMK25LUU | 6 | 25 | -0.012 | 40 | -0.019 | 112 | 0 | 62 | -0.2 | 50 | 8 | 51 | 5.5×9.2×5.4 | 1560 | 3140 | 475 |
LMK30LUU | 6 | 30 | -0.012 | 45 | -0.019 | 123 | -0.4 | 74 | -0.2 | 58 | 10 | 60 | 6.6x11x6.5 | 2490 | 5490 | 575 |
LMK40LUU | 6 | 45 | -0.015 | 60 | -0.022 | 154 | -0.4 | 96 | 0 | 75 | 13 | 78 | 9x14x8.6 | 3430 | 8040 | 1380 |
