Chinese Manufacture GCR15 LMF6UU LMF8 10 12 30 35 50 60 LUU International Standard model Linear Motion Circular Flange Linear Bearing
High precision, wear-resistant, and long-lasting linear bearings made of high-quality bearing steel that meet international standards can be used in fields such as steel metallurgy, aerospace, medical equipment, etc.
- Product Details
- parameter
- Packing
- Inquiry Now
- Related Products
- Customer Reviews
Linear bearing specifications

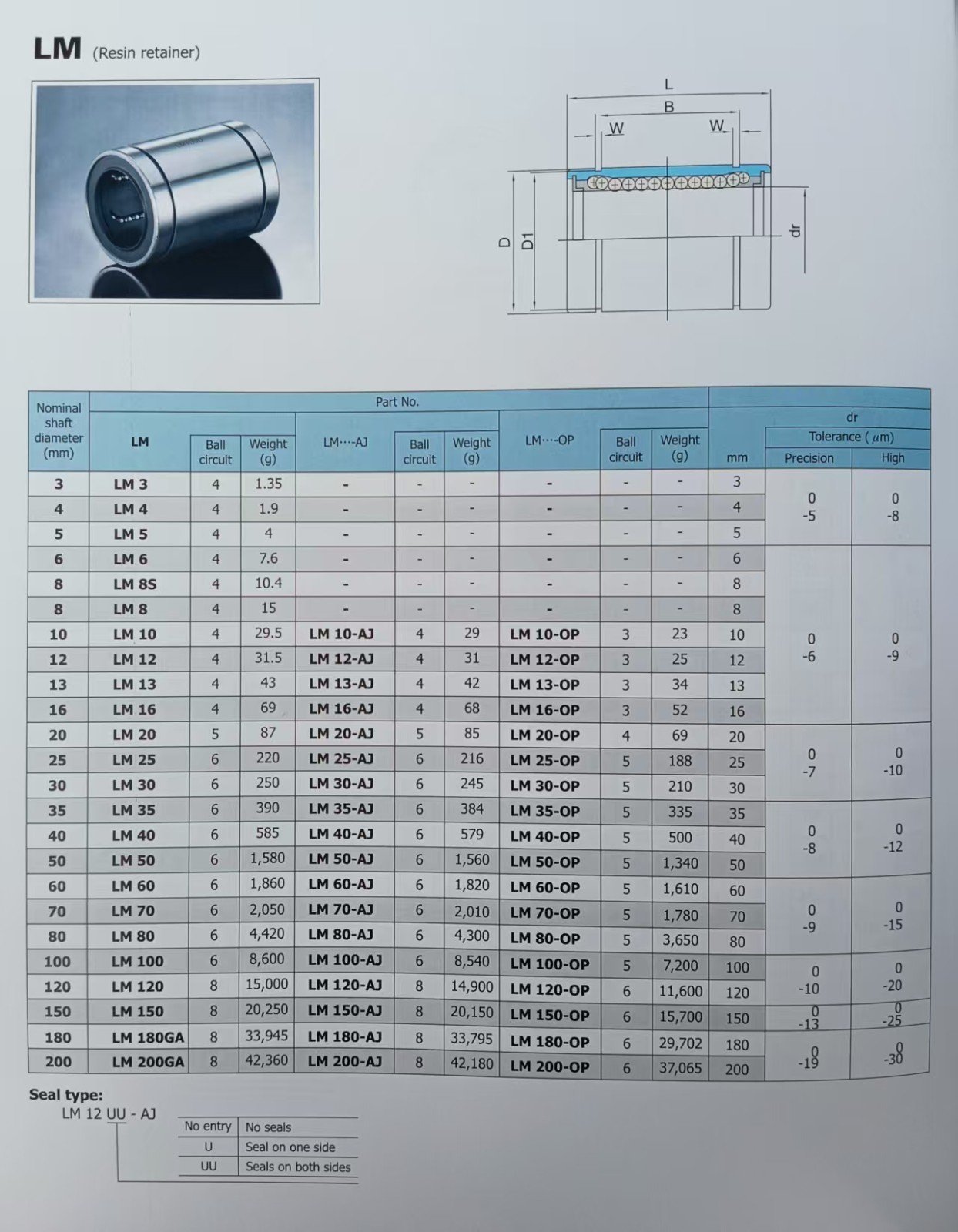

"LM" metric standard type linear bearing

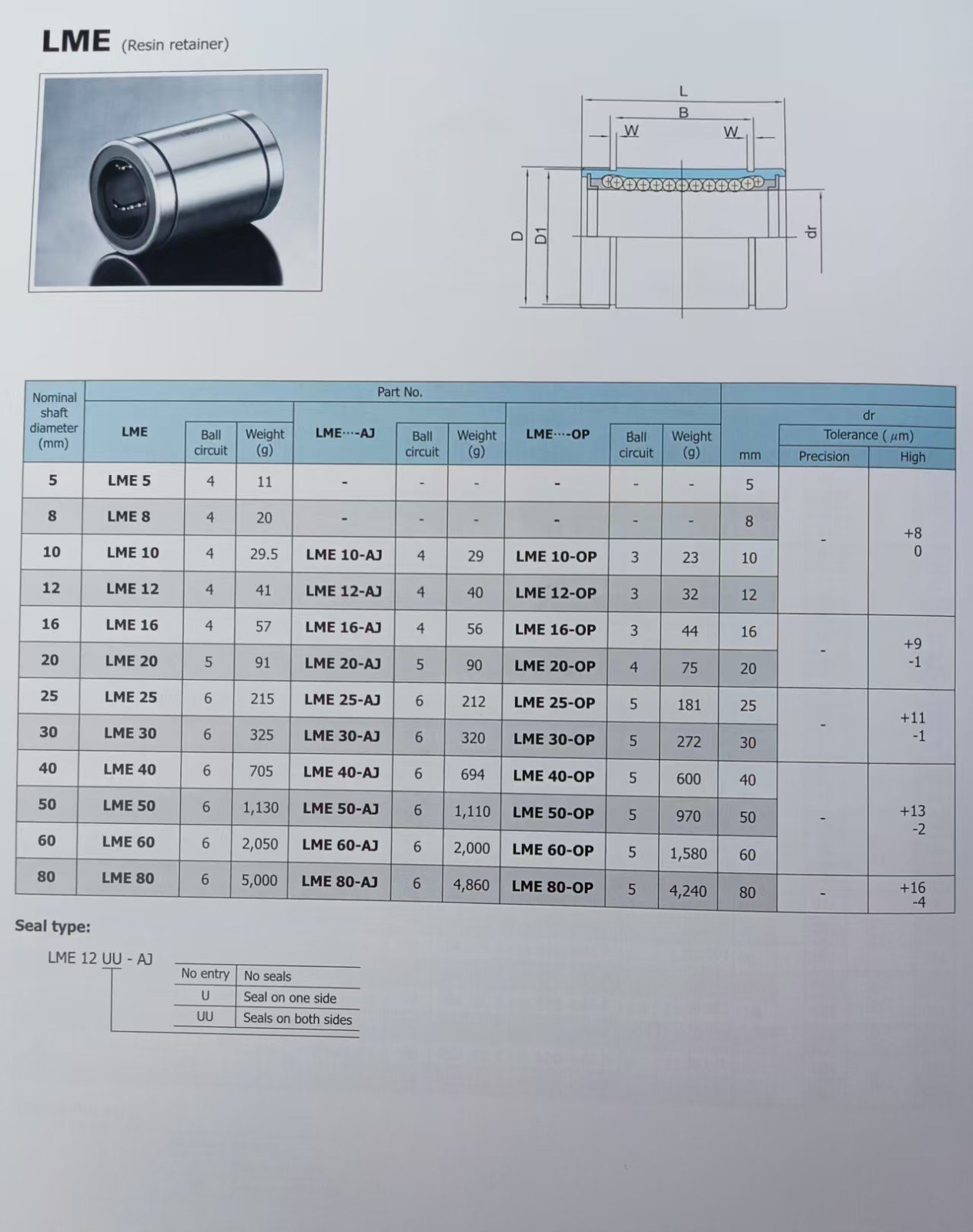

"LME" means inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" means open type linear bearing
"AJ" means adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing

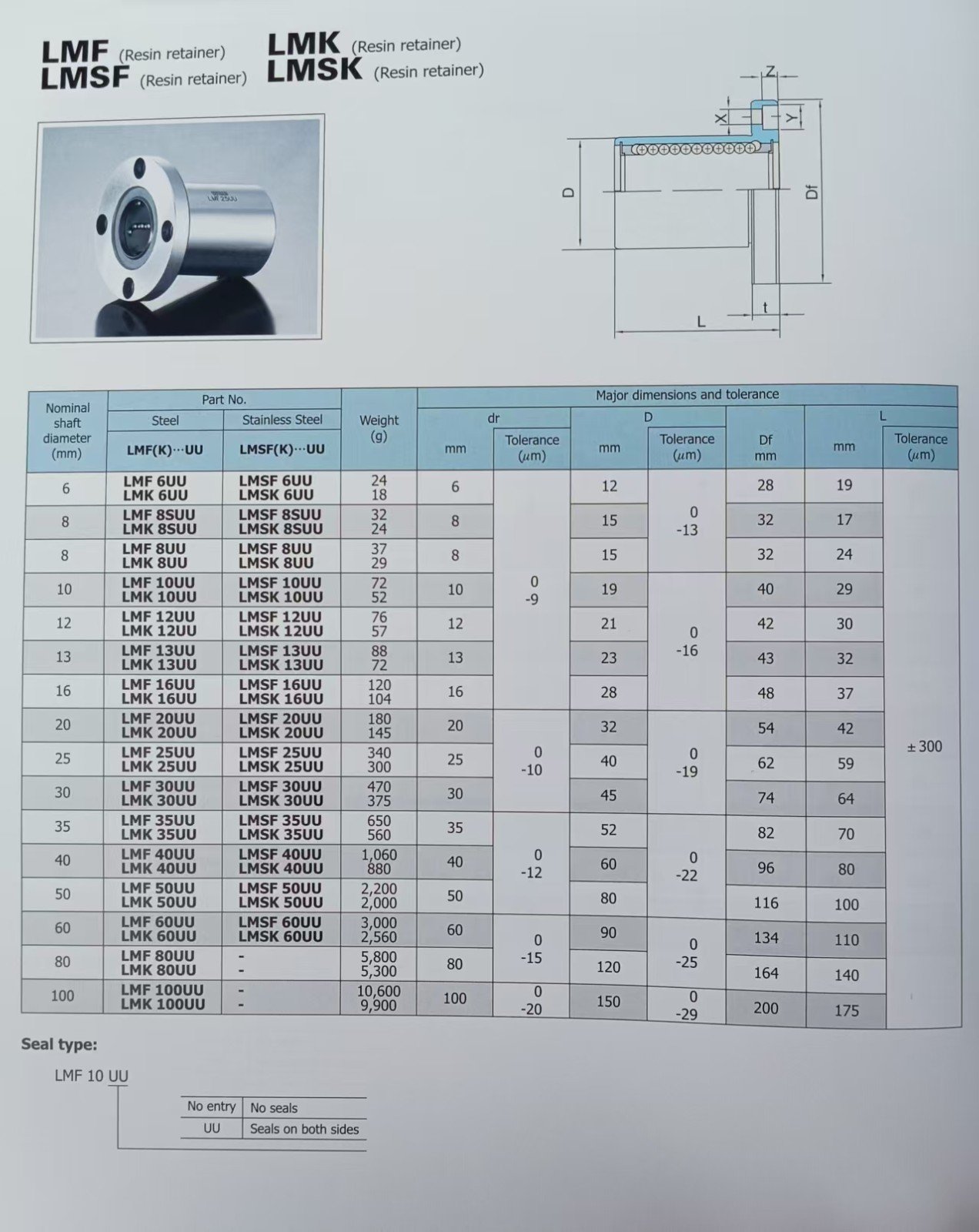

Type | Ball circuits | dr | dr (Tol.) | D | D (Tol.) | L | L (Tol.) | D1 | D1 (Tol.) | weight (g) | H | P.C.D | Hole d1xd2xh | C (N) | Co (N) |
LMF12UU | 4 | 12 | -0.009 | 21 | -0.013 | 30 | -0.2 | 42 | -0.2 | 76 | 6 | 32 | 4.5x8x4.4 | 42 | 61 |
LMF16UU | 5 | 16 | -0.009 | 28 | -0.013 | 37 | -0.2 | 48 | -0.2 | 134 | 6 | 38 | 4.5x8x4.4 | 79 | 120 |
LMF20UU | 5 | 20 | -0.01 | 32 | -0.016 | 42 | -0.2 | 54 | -0.2 | 180 | 8 | 43 | 5.5×9.5×5.4 | 88 | 140 |
LMF25UU | 6 | 25 | -0.01 | 40 | -0.016 | 59 | -0.3 | 62 | -0.2 | 340 | 8 | 51 | 5.5×9.5×5.4 | 100 | 160 |
LMF30UU | 6 | 30 | -0.01 | 45 | -0.016 | 64 | -0.3 | 74 | -0.2 | 460 | 10 | 60 | 6.6x11x6.5 | 160 | 280 |
LMF40UU | 6 | 40 | -0.012 | 60 | -0.019 | 80 | -0.3 | 96 | -0.2 | 1054 | 13 | 78 | 9x14x8.6 | 220 | 410 |
