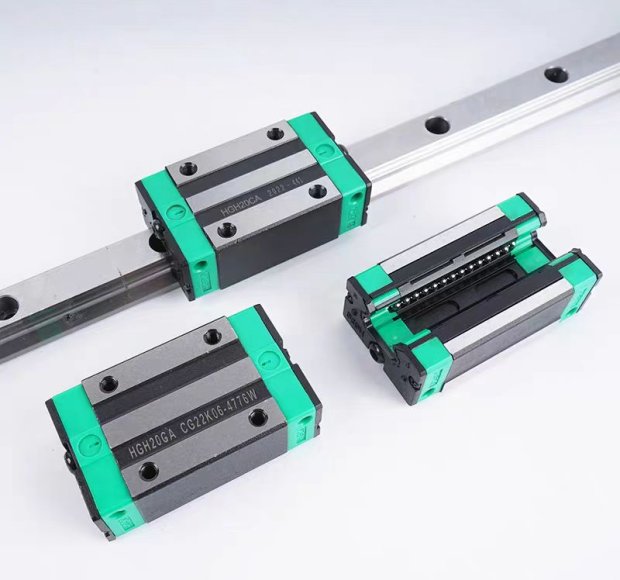

Heavy Duty High Quality HGH HGW EGH EGW CA CC HA 20 30 35 55 Linear Guide Rail&Block Linear Slide Rail Linear Guideway
we offers HGH HGW EGH EGW CA CC HA 15 25 45 65 Linear Guide Rail&Block Sliding Rail Linear Guideway , low-priced and good performing rod end bearing products. we are factory automation components one stop purchase platform,our bearings can meet the needs of different customers.
- Product Details
- parameter
- Packing
- Inquiry Now
- Related Products
- Customer Reviews
High Hardness & Rigidity
The beautiful and anti-rust surface treatment, with high accuracy, hardness, and strong durability.
Complete Sliding Unit
Professional and technical rail and block, stabilizing the original rail. Move smoothly without deflection, minimal wear and low noise while using.
Model | Dimensions of Assembly(mm) | Dimenslons of Block(mm） | |||||||
H | H | N | W | B | B1 | C | L1 | L | |
EGW15SB | 24 | 4.5 | 18.5 | 52 | 41 | 5.5 | - | 23.1 | 40 |
EGW15CB | 24 | 4.5 | 18.5 | 52 | 41 | 5.5 | 26 | 39.8 | 56 |
EGW20SB | 28 | 6 | 19.5 | 59 | 49 | 5 | 29 | 5 | |
EGW20CB | 28 | 6 | 19.5 | 59 | 49 | 5 | 48.1 | 69.1 | 12.3 |
EGW25SB | 33 | 7 | 25 | 73 | 60 | 6.5 | - | 35.5 | 59 |
EGW25CB | 33 | 7 | 25 | 73 | 60 | 6.5 | 35 | 59 | 82 |
EGW30SB | 42 | 10 | 31 | 90 | 72 | 9 | - | 41.5 | 69 |
EGW30CB | 42 | 10 | 31 | 90 | 72 | 9 | 40 | 70.1 | 98.1 |
EGW35SB | 48 | 11 | 33 | 100 | 82 | 9 | 45 | 75 | |
EGW35CB | 48 | 11 | 33 | 100 | 82 | 9 | 50 | 78 | 108 |
Blocks packing
1. Industry packing+Carton+Pallets
2. Green box +Carton+Pallets
3. OEM box+Carton+pallets
Rails packing
Plastic bag+wooden box.
