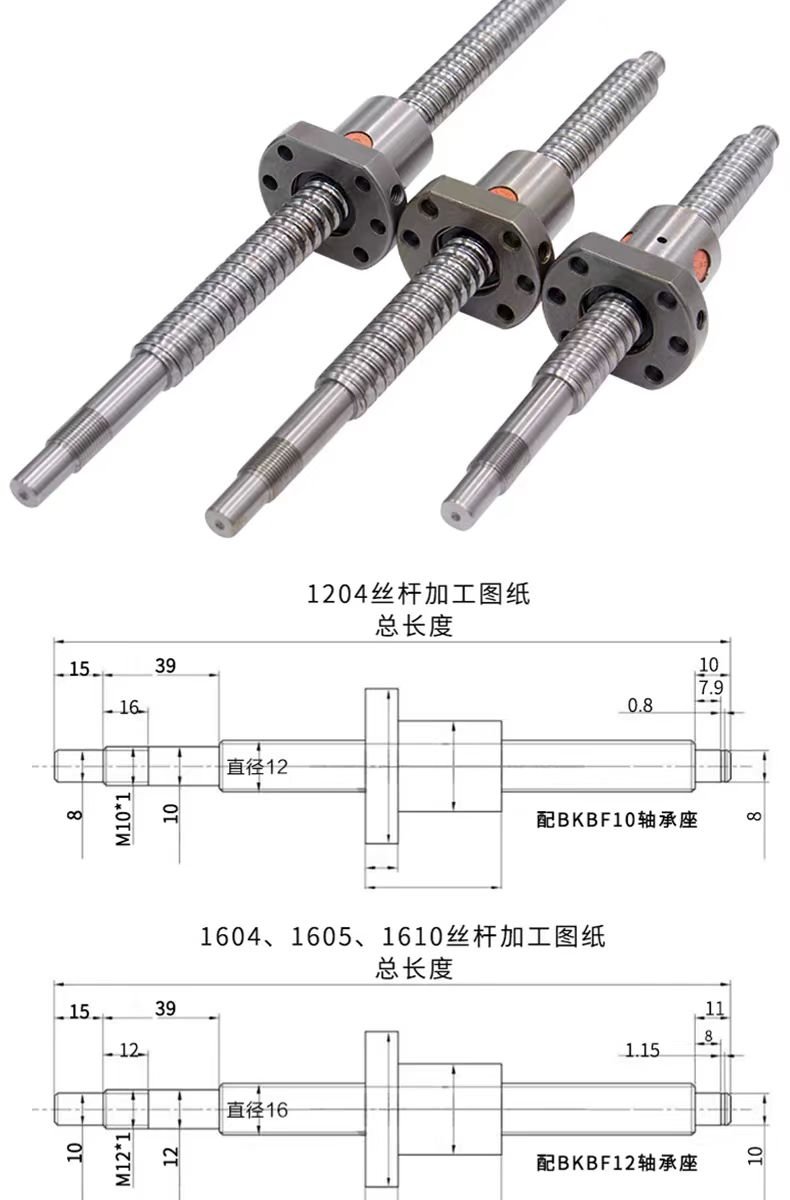

High Quality Good Price SFS1210 Ball Screw Rod with Nut – 200mm

High Quality Good Price SFS1210 Ball Screw Rod with Nut – 200mm – 1561mm open source CNC product

Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack.

Inquiry Now

add to cart

Product Details

Features

1.High-speed operation

2.Low friction and noise

3.High precision, duration, and reliability

4.Smooth movement

5.High efficiency of transferring

6.No gap and preloading

Applications

1.Machine tools
2.Industrial machinery
3.Printing, paper-processing, automatic machines, textiles, etc.
4.Electronic machinery
5.Robot, measuring instruments, medical equipment, X-Y table, factory automation equipment
6.Transport machinery

parameter

型号Model No	滚珠螺桿、螺帽之基準數據 Dimensions
	d	1	Da	D	A	B	L	W	H	X	Q	n	Ca	C0a	K
SFS01205 -2.8	12	5	2.5	24	40	10	31	32	30	4.5	M6	2.8x1	661	1316	19
SFS01210-2.8		10	2.5	24	40	10	48.5	32	30	4.5	M6	2.8x1	642	1287	19
SFS01605-3.8 SFS01610-2.8	15	5	2.778	28	48	10	38	38	40	5.5	M6	3.8x1	1112	2507	30
		10	2.778	28	48	10	47	38	40	5.5	M6	2.8x1	839	1821	23
SFS01616-1.8		16	2.778	28	48	10	45	38	40	5.5	M6	1.8x1	552	1137	14
SFS01616-2.8		16	2.778	28	48	10	61	38	40	5.5	M6	2.8x1	808	1769	22
SFS01620-1.8		20	2.778	28	48	10	57	38	40	5.5	M6	1.8x1	554	1170	14
SFS02005 -3.8 SFS02006 -4.8 SFS02008-4.8	20	5	3.175	36	58	10	40	47	44	6.6	M6	3.8x1	1484	3681	37
		6	3.175	36	58	10	50	47	44	6.6	M6	4.8x1	1811	4644	47
		8	3.175	36	58	10	60	47	44	6.6	M6	4.8x1	1863	4861	50
SFS02010-3.8 SFS02020-1.8 SFS02020 -2.8		10	3.175	36	58	10	60	47	44	6.6	M6	3.8x1	1516	3833	40
		20	3.175	36	58	10	57	47	44	6.6	M6	1.8x1	764	1758	19
		20	3.175	36	58	10	77	47	44	6.6	M6	2.8x1	1118	2734	29
SFS02505-3.8	25	5	3.175	40	62	10	40	51	48	6.6	M6	3.8x1	1650	4658	43
SFS02506-4.8		6	3.175	40	62	10	50	51	48	6.6	M6	4.8x1	2015	5879	55
SFS02508-4.8		8	3.175	40	62	10	60	51	48	6.6	M6	4.8x1	2009	5867	56
SFS02510-3.8		10	3.175	40	62	12	62	51	48	6.6	M6	3.8x1	1638	4633	45
SFS02525 -1.8		25	3.175	40	62	12	70	51	48	6.6	M6	1.8x1	843	2199	22
SFS02525-2.8		25	3.175	40	62	12	95	51	48	6.6	M6	2.8x1	1232	3421	34
SFS03205 -3.8 SFS03206-4.8	32	5	3.175	50	80	12	42	65	62	9	M6	3.8x1	1839	6026	51
		6	3.175	50	80	12	51	65	62	9	M6	4.8x1	2247	7608	65
SFS03208-4.8	31	8	3.969	50	80	12	62	65	62	9	M6	4.8x1	3015	9181	68
SFS03210-3.8		10	3.969	50	80	13	62	65	62	9	M6	3.8x1	2460	7255	55
SFS03220 -2.8		20	3.969	50	80	12	80	65	62	9	M6	2.8x1	1907	5482	43
SFS03232-1.8		32	3.969	50	80	13	84	65	62	9	M6	1.8x1	1257	3426	27
SFS03232 -2.8		32	3.969	50	80	13	116	65	62	9	M6	2.8x1	1838	5329	42
SFS04005 -3.8	40	5	3.175	63	93	15	45	78	70	9	M8	3.8x1	2018	7589	60
SF04006 -4.8		6	3.175	63	93	14	50	78	70	9	M6	4.8x1	2467	9583	77
SFS04008-4.8	38	8	3.969	63	93	14	61	78	70	9	M6	4.8x1	3327	11491	81
SFS04010-3.8		10	6.35	63	93	14	63	78	70	9	M8	3.8x1	5035	13943	67
SFS04020-2.8		20	6.35	63	93	14	82	78	70	9	M8	2.8x	3959	10715	54
SFS04040-1.8		40	6.35	63	93	15	105	78	70	9	M8	1.8x1	2585	6648	34
SFS04040-2.8		40	6.35	63	93	15	145	78	70	9	M8	2.8x1	3780	10341	52

Packing
